5120wh Rack LiFePO4 Energy Storage Battery 51.2V 100ah Lifepo4 Battery Rack

Name: 5120wh Rack LiFePO4 Energy Storage Battery 512V 100ah Lifepo4 Battery Rack
Brand: FUNPACK
Price: 1 USD

China 5120wh Rack LiFePO4 Energy Storage Battery 51.2V 100ah Lifepo4 Battery Rack wholesale

Brand Name : FUNPACK

Model Number : LH-LP-JT5A

Certification : CE ROHS UN38.3

Place of Origin : CHINA, GuangDong

MOQ : 1

Price : Negotiated The Price

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000PCS /Day

Delivery Time : 30-45 work days

Packaging Details : Customer Requirements

Rated voltage : 51.2V

Rated capacity : 100Ah

Battery pack voltage range : 58.4~40V

Total Power(kWh) : 5120Wh

Combination : 1P16S

Insulation resistance test value(Ω) : ≤30mΩ

Gross weight : >=55KG

Battery size : 750*400*155mm(±2mm)

Contact Now

Product Description:

51.2V 100Ah Lifepo4 Battery Pack For Energy Storage Equipment 3000Cycles Life

Product Description Of 51.2V 100Ah Lifepo4 Battery Pack:

Power display: through the LED lamp display battery power, intuitive understanding of the battery condition;

Waterproof aviation connector: adopt waterproof aviation connector, safe and reliable.

Wider working temperature range, excellent high and low tempera-ture performance.

Battery pack safety, with temperature probe, automatic start protection when the temperature exceeds;

Battery cycle life is high, in line with low carbon, energy saving, environmental protection values;

Product Basic Information Of 51.2V 100ah Rack LiFePO3 Engry Storage Battery:

Battery parameter			Remark
1	Rated voltage	51.2V	/
2	Rated capacity	100Ah	/
3	Battery pack voltage range	58.4~40V	/
4	Total Power(kWh)	5120Wh	/
5	Combination	1P16S	/
6	Insulation resistance test value(Ω)	≤30mΩ	/
7	Operating temperature	Charging 0 ~ 45ºC;	/
7	Operating temperature	Discharging -10 ~ 50ºC	/
8	Standard charging current	0.5C	/
9	Quick charging current	1.0C	/
10	Standard discharge current	1.0C	/
11	Maximum continuous discharge current	2.0C	10S
12	Gross weight	>=55KG	/
13	Ambient relative humidity	25-85%RH	/
14	Battery size	750400155mm(±2mm)	/
15	Open circuit voltage	Open circuit voltage measured within 24 hours after standard charge	≥51V
16	Capacity retention	Fully charging, store them at (20±5)ºC for 28 days, then discharge to 40V @0.2C.	≥300min
16	Capacity retention		Discharging time≥300min

5120wh Rack LiFePO4 Energy Storage Battery 51.2V 100ah Lifepo4 Battery Rack

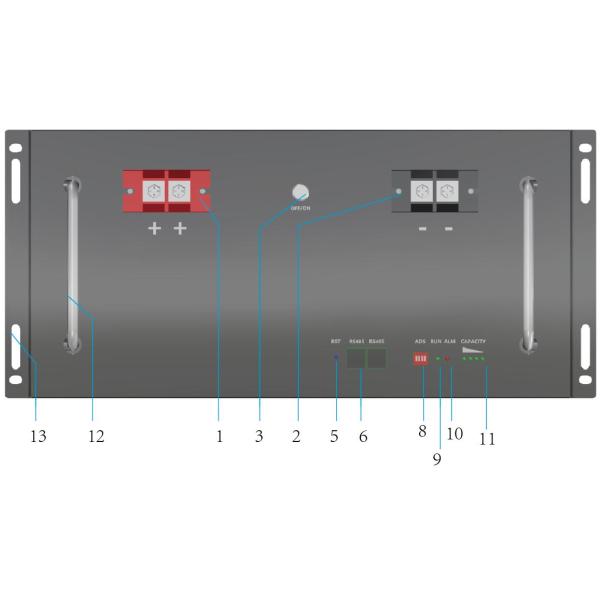

No.	Description	Remark
1	Anderson terminal	Positive port/Negative port
2	Anderson terminal	Positive port/Negative port
3	Main switch	ON/OFF
4	/	/
5	Reset button	RST
6	RS485/CAN	RS485/CAN
7	/	/
8	ADS	Address code switch
9	LED	RUN
10	LED	ALM
11	LED	CAPACITY
12	Handle	Handle
13	Hanger	Bracket Pendant

Main Applications of 51.2V 100ah Rack LiFePO3 Engry Storage Battery:

This product is mainly used for home energy storage system. Schools, restaurants, pizzerias, small factories, etc. can also be used.

5120wh Rack LiFePO4 Energy Storage Battery 51.2V 100ah Lifepo4 Battery Rack

FAQ
Q1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
